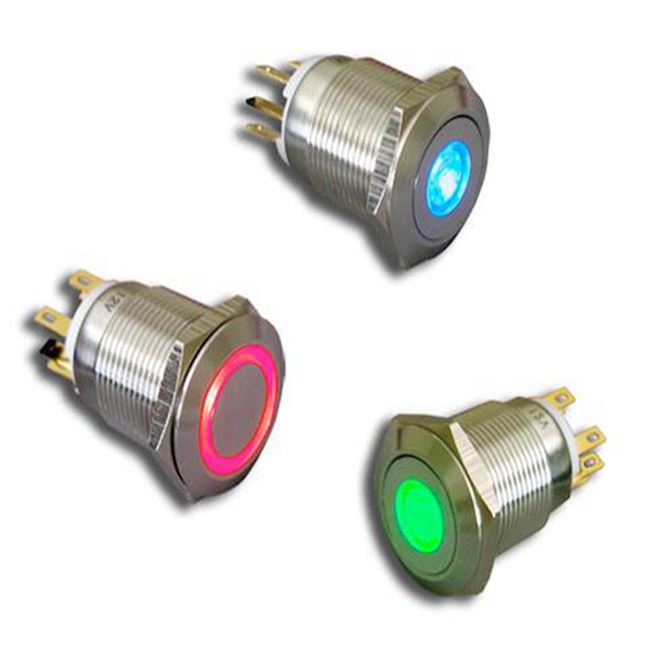

Waterproof Metal Push Button Switch

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
Metal Pushbutton Switches
L&G Metal Pushbutton Switches can be found on valuable machine and public ticket dispenser applications, we could offer 12mm,16mm, 19mm, 22mm, 25mm,30mm and high current switches. Along with other industrial type applications that require vandal resistance in a public setting. With a wide variety of options, including illuminated, sealed and long life expectancy. The distinctive of L&G metal switches are light weight, high strength, corrosion resistance, aesthetic, easy heat dissipation and more.

Applications of L&G Anti-vandal Switches include industrial control instruments, medical equipment, security monitoring equipment, vehicle peripherals, audio-visual equipment, energy storage equipment.

APPLICATIONS
Industrial control products, Medical equipment, Communication equipment.

  • PBS

  • L&G

Availability:
Quantity:
Inquire Add to Basket
Model Description
Model NO. PBS
Mounting diameter 12,16,19,22,25mm etc
Head shape Plat Head/High Head
Switch Combination NO,NC
Operation type Momentary/self locking
Illuminating type Annular,power symbol,dot
Illuminating color red,green,blue,yellow,orange,white,purple,pink
Lamp voltage 2V/3V/6V/12V/24V/36V/110V/220V/250V
Shell material Stainless steel,aluminum oxide,copper plating

Application:

They are widely used in TV, VCD, juicer, heater, consumer electronics,  household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.

The Others Parameters
Project Parameter Project Parameter
Contact type Slow moving single contact Operation Schedule Connected:1.5mm,Total:3.5mm
Contact Resistance ≤50mΩ Actuating Force about 8N
Insulation  Resistance ≥1000mΩ Mounting panel thickness ≤13mm. customised the others
Dielectric Strength 1000VAC min Nut torque 5~14N.m
Ambient  Temperature -30ºC~+80ºC

Outshell/Press Key


Stainless Steel/aluminum oxide/copper plate
Protection Levels IK10 Diffuser PC
Electrical Life

Rated:2A250VAC-      100,000 times

Rated:5A250VAC-50,000    times

Rated:8A250VAC-20,000  times

Reated:10A250VAC-  20,000 times

Nut


Base Seat/

Bottom Seat

Nickel brass



PA66
Mechanical Life

Maintained-200,000 times

Self-locking-800,000    times


Pins                      Contact

PA66

H65 Silver Plated
Waterproof IP65 Spring Improved steel wire
Switch Rated Load

Project

 Parameter
Reated Insulation Voltage AC250V
Fusing Current 15A
Rated Voltage DC12V DC24V AC110V AC250V
Rated Current Nonreactive Load 10 10 10 10
Inductive Load 3 3 3 3


Led Lamp Parameters
Project Parameter
Led type High Brightness LED lamp,cool
Luminous color Red,Green,Blue,Yellow,Orange,White,Purple,Pink
Rated Voltage AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V
Rated Current ≤20mA
Reference Life 40,000hours

China waterproof metal button switch manufacturerChina waterproof metal button switch manufacturer
