25A 2 Position Rocker Switch

Share to:
25A 2 Position Rocker Switch High power products can be realized. Mainly used for power control of electric welding machines, medical equipment, industrial control equipment, mechanical equipment and other products.
  • 25A DPST Rocker Switch
  • 25A DPST Rocker Switch
  • 25A DPST Rocker Switch
Availability:
Quantity:


Product Description


Protection Level:

IP67

Max. Current:

25A

Max. Voltage:

250VAC

Item:

rocker switch

Current:

16A/25A

Voltage:

125VAC/250VAC

Material:

PA66/PC

Main Function:

ON-OFF DTSP

Mechanical Life:

10000 Cycles

Scope:

Household appliances, electric force ect

Authenticate:

CE, CQC, TUV

OEM:

YES

It is widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.
Product Description

1.Function:  ON-OFF,on-off-on,on-on,on-off with light function ;

                      Momentary on round rocker switch with top LED light;

                      Can be on-off with any color transparent button with any color led light inside;

2.Material:Base plastic---Nylon 66;Button plastic---PC or Nylon 66;
          Copper parts such as terminal----Copper H62;
          Terminal surface treatment----- tin plating;
          Contact----silver on copper ;
          Spring----Tungsten steel;
          Waterproof cap----PVC (It has waterproof cap if required. )

3. Material:Silver Contact,PC,PA66;

4.Used for home appliances and electronic equipments.Especially for water heater

Item
rocker switch t85 waterproof t125 rocker switch
Housing Mterial PA66
Button Material PC
Rating 25A250VAC/10A125VAC/35A20VDC/16A250VAC
Ambient Temperature -10ºC~+85 ºC
Operating Temperature -25ºC~+85 ºC
Contact Resistance <50MΩ
Insulation Resistance >10000  MΩ
Electrical Life >50000 Cycles
Mechanical Life >10000 Cycles
Ways And Pins 1 Way and 4 Pins
Contacts Copper with compound silver
Terminals & Mid pins Copper with silver plated

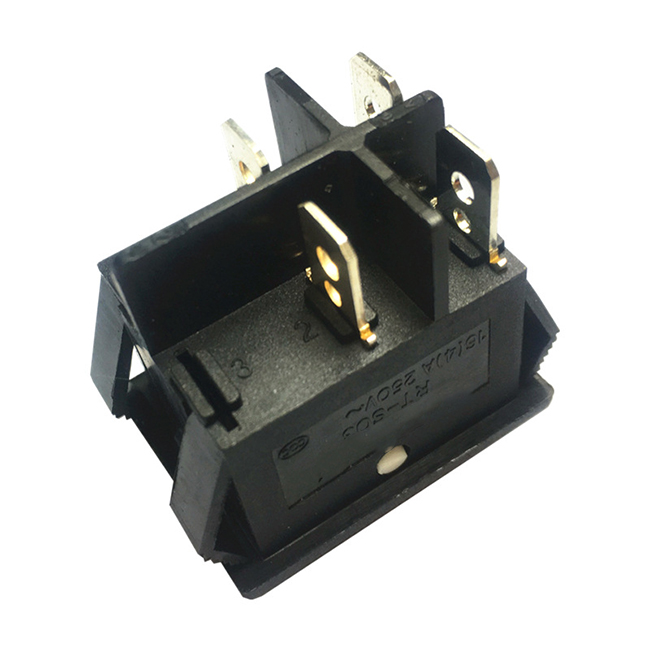

  • Description: LR210 series inner waterproof rocker switches 30X22mm without led

  • Current rating: 25A 125VAC(UL CUL) 22A/250V AC (CQC ENEC)

  • Contact resistance: 50MΩ Max

  • Insulation resistance: 500VDC 100MΩMin.

  • Dielectric strength: 1500VAC for 1minute

  • Electrical life cycle:10,000 cycles

  • Safety approval: UL CUL ENEC CQC CE

Electric Welding Machine 25A IP65 Waterproof Push Rocker Switch
Electric Welding Machine 25A IP65 Waterproof Push Rocker Switch
Electric Welding Machine 25A IP65 Waterproof Push Rocker Switch
Electric Welding Machine 25A IP65 Waterproof Push Rocker Switch
Electric Welding Machine 25A IP65 Waterproof Push Rocker Switch
-Why choose us---
L&G Electronics specialize in this field more than 20 years,with good quality and pretty competitive price
. Variety of Designs, Provide Professional & Original Fashionable Designs, with more than thousand designs
. Original manufacturer with direct factory price, Competitive & Fashionable
. High management Standard for quality control
. Small order acceptable: 500pcs are welcome
. Safe payment terms: T/T, Western Union, are available
. Prompt Delivery & Lowest shipping cost : We can ship out within 30 days for general order
. OEM available, Customers' designs are warmly welcome


1.Once we get your inquire for our switches, we will reply you within 30 min
2.Checking the drawing and all details of our switches with you, if you think it is ok, then we need your signature on our drawing for final confirmation.
3.Quotation will be sent to you accordingly.
4.After getting your signed quotation, samples will be sent to you immediately.
5.If our switches passed your testing, you may release to us.
6.Receiving your official order, we will let you know our shipping date soon.
7.Paying 50% for us, we will start to proceed your order to keep the goods finished on-time.
8.Balance 50% payment before shipment.
9.Getting all payment from you, goods will be shipped to you per your requested shipping way

Samples & Packaging & Shipping:
1)Samples:
A.Free for you, Quantity less than 6 pcs, freight collected.
B.Lead time for samples: 3~7 days for preparing samples.

2) Shipping
A.Couriers:Fedex, DHL, UPS, TNT
B.Other: Air or by Sea
As we have a long time cooperation with Courier agent, we can get a priority price for you. We can quote you the transportation charges at first for your comparasion.

FAQ
Q1--What is your MOQ?
In general ,our MOQ is 500 pcs, it will be more convenient and safety on packaging. Of course, it can be negotiable according to your situation.
Q2--What is the delivery time ?
3-7 days for samples; 10-30 days for batch goods.
Q3--Can you give me samples to test and how many samples?
Yes, we provide free samples, with shipping and taxes paid by the buyer. Usually, free samples are 1~10 pieces.
Q4--Does your products through UL, ROHS certification and so on?
Yes, our switches are with UL, CUL, VDE, TUV, ENEC, CE, CQC, Nemko, CB approved, meet EU, RoHS standard.
Q5--Can you accept OEM?
Yes, we can accept OEM and ODM, they are welcome by us. But please offer us your authorization certification.
Q6--Is there cheap shipping cost to our country?
For small order, express will be best. And for bulk order, shipping by sea is better, but it takes much time.
