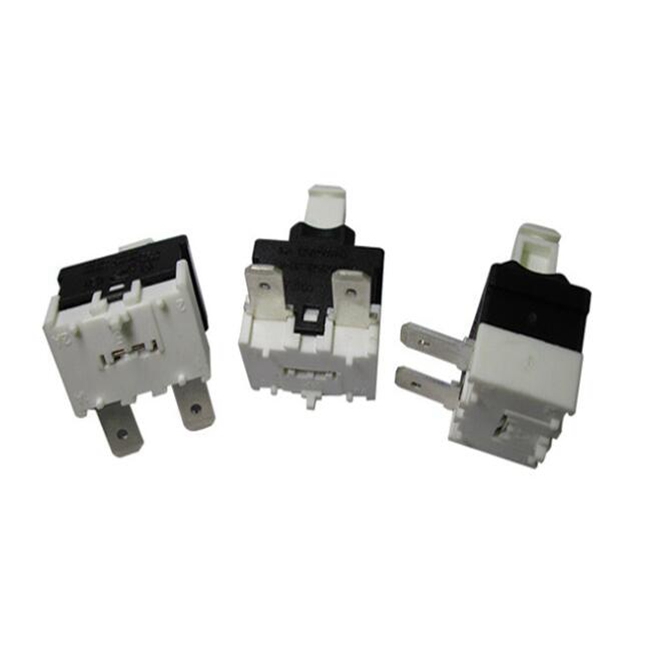

Power Push Button Switch 16A250VAC

Share to:
The DPST Push Button Switches used for:Vacuum cleaner, Coffee Machine, Micro wave oven, rice cooker, TV set, papper shredding machine , Soymilk maker, electric VCD, VCD peripheral , power amplifi
  • MPS21

Rating16A 125/250VAC 3/4HP 125/250VAC (cUL)
16(4A) 250V-T125/55 (NENC17, CB, NEMKO, CQC)
10(6)A 250V~T125/55(5E4) (NENC17, CB, NEMKO, CQC)
Initial contact resistance:20mohm max.
Insulation resistance:100mω Min. 500VDC
Withstand voltage:1500VAC for 1 minute
Operation force:650± 100 gf
Endurance:10, 000 cycles
