Audio 24 Position Rotary Switch
Audio 24 Position Rotary Switch Audio 24 Position Rotary Switch
Audio 24 Position Rotary Switch Audio 24 Position Rotary Switch
Audio 24 Position Rotary Switch Audio 24 Position Rotary Switch
Audio 24 Position Rotary Switch Audio 24 Position Rotary Switch

loading

Audio 24 Position Rotary Switch

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
RS26 Rotary Switch have SP3T SP4T SP5T SP6T SP7T SP8T SP9T SP10T SP12T SP13T SP15T SP16T SP18T SP20T SP24T DP3T DP4T DP5T DP6T DP8T DP10T DP24T DP12T 3P8T 4P3T 2P9T 4P6T etc variety of Angle Rotary Switch
  • RS26

  • L&G

Availability:
Quantity:

RS26 Rotary Switch have SP3T SP4T SP5T SP6T SP7T SP8T SP9T SP10T SP12T SP13T SP15T SP16T SP18T SP20T SP24T DP3T DP4T DP5T DP6T  DP8T DP10T DP24T DP12T 3P8T 4P3T 2P9T 4P6T etc variety of Angle Rotary Switch.

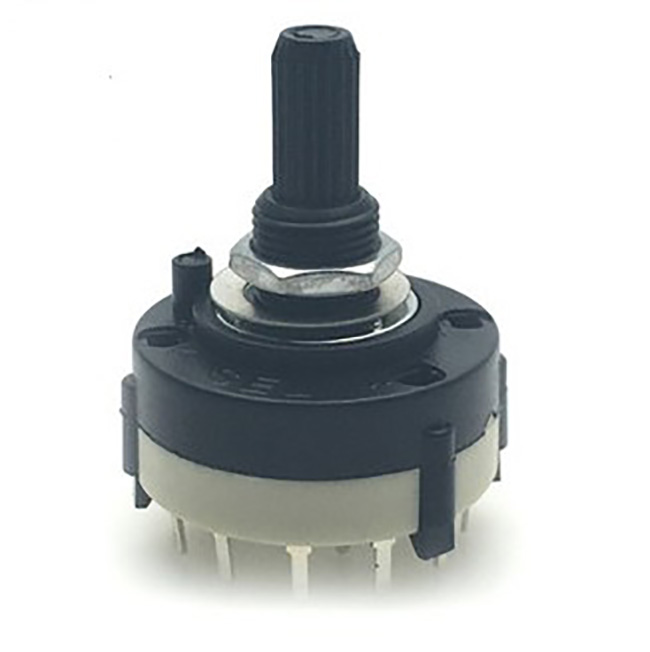

1-POLE / 24 POSITION, By spacer clips can be selected in the 24 POSITION,GET EXACTLY AS PICTURE SHOW
Position this switch can be adjusted, you can set most needed Position (picture just for show, does not mean you actually buy Position items)
Usage:
1.Remove the screw and washer, you can see the band switch labeled Position numbers next to the square hole
2.gaskets, you can see there is a raised portion
3.would be raised on the part of the gasket into the square hole you need the number next to the Position and tighten the screws.rs26 <a href=https://www.lgswitch.com/en/index.html target='_blank'><a href=https://lgswitch.com/en/Rotary-Switches.html target='_blank'>Rotary Switch</a></a>es


Product Name: Rotary Switch

Model No. : RS26-1-24-20K

Type : 1 Pole 24 Positions

Rated Power:300mA, 125V AC.350mA, 30V DC

Max. Operating Voltage : 250V AC/DC

Max. Operating Current : 5A, non-switching

Durability :>=10000 times

Withstand Voltage:1500V Max

Insulation Resistance:100MΩ min.

Temperature Range:  -30°C-85°C

Shaft Size:  6 x 11mm / 0.236" x 0.43"(Diameter*L)

mbb 24 position rotary switch24 position <a href=https://www.lgswitch.com/en/index.html target='_blank'><a href=https://lgswitch.com/en/Rotary-Switches.html target='_blank'>Rotary Switch</a></a>es

MBB <a href=https://www.lgswitch.com/en/index.html target='_blank'><a href=https://lgswitch.com/en/Rotary-Switches.html target='_blank'>Rotary Switch</a></a>ES


DP12T <a href=https://www.lgswitch.com/en/index.html target='_blank'><a href=https://lgswitch.com/en/Rotary-Switches.html target='_blank'>Rotary Switch</a></a>
26MM ROTARY SWITCH
