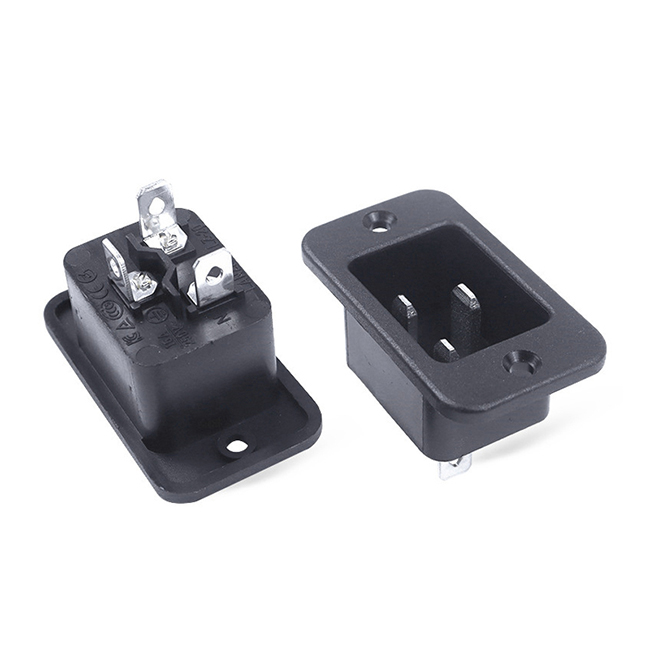

C20 Power Socket
C20 Power Socket C20 Power Socket
C20 Power Socket C20 Power Socket
C20 Power Socket C20 Power Socket

loading

C20 Power Socket

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
C20 terminal quick electrical connector snap type male battery connectors power connector rocker switch offer a high switching current in a compact design.It is a snap-in mounted rocker switch with a high
mechanical life in a rugged nylon 66 housing.They have high quality for long life at heavy loads and industry-standard mounting
dimensions.This ac socket can be used in a variety of applications, like Household appliances and industrial equipment.

  • C20 Power Socket

Availability:
Quantity:
Inquire Add to Basket

C20 terminal quick electrical connector snap type male battery connectors power connector

IEC C14 terminal quick electrical connector snap type male battery connectors power connector rocker switch offer a high switching current in a compact design.It is a snap-in mounted rocker switch with a high
mechanical life in a rugged nylon 66 housing.They have high quality for long life at heavy loads and industry-standard mounting
dimensions.This ac socket can be used in a variety of applications, like Household appliances and industrial equipment.
Items
AC socket details
Housing material
Nylon PA66
Contacts material
Copper
Rating
10A/250VAC 16A/250VAC
Temperature
-40℃ to 125℃
Color
Black/According customer's demand
Contact Resistance
<30MΩ
Humidity
93%+40
Flammability
UL94V0
Eletrical life
50000 cycles
Mechanical life
50000 cycles
Referance standard
EN 61058-1
Approvl marks
CE CQC CCC TUV ROHS ENEC
