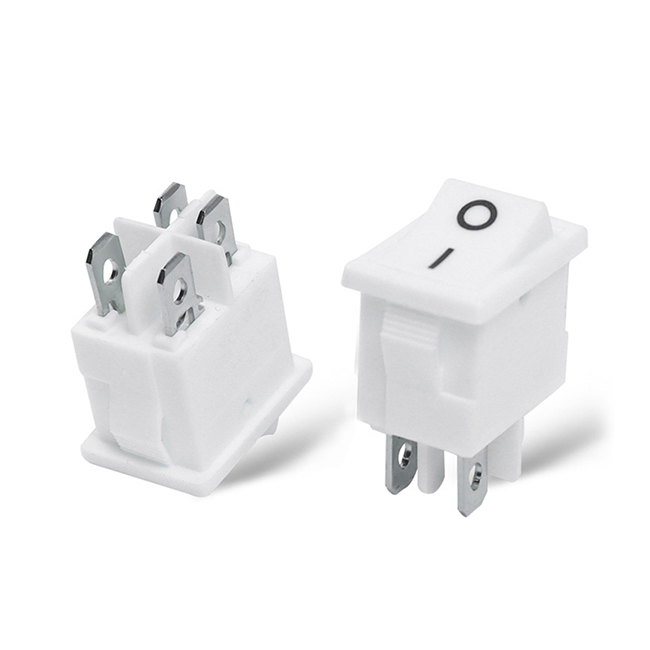

DPST Rocker Switch
DPST Rocker Switch DPST Rocker Switch
DPST Rocker Switch DPST Rocker Switch
DPST Rocker Switch DPST Rocker Switch
DPST Rocker Switch DPST Rocker Switch
DPST Rocker Switch DPST Rocker Switch
DPST Rocker Switch DPST Rocker Switch

loading

DPST Rocker Switch

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
The DPST rocker switch Used for ATX switching power supply, monitor, power strip, copier, fax machine, audio, office equipment etc

  • 19*13mm

  • DPST SWITCH

Availability:
Quantity:
Inquire Add to Basket

Function: DPST SPST. Momentary, spst only


Panal size: 19.2/19.4/19.8*12.9mm


Certificates: UL, CSA, VDE, ENEC


Actuator color: Black, blue, white, red, grey, ...


Specifications & features:

Rating: 10A 125/250vac(cUL); 12A 125/250vac(cUL); 12(4)a 250V-t85/55(VDE, ENEC10) 16A250VAC

Initial contact resistance: 20 max.

Insulation resistance: 100mω Min. 500vdc

Withstand voltage: 1000vac for 1 minute

Operation force: 500± 200 gf

Endurance: 10, 000 cycles


Material:

Terminal base: Nylon 66(UL 94V0)

Actuator: Nylon 66(UL 94V-0)

Spring: Stainless steel wire

Contact: Copper pickling

Terminal: Brass/silver plated
