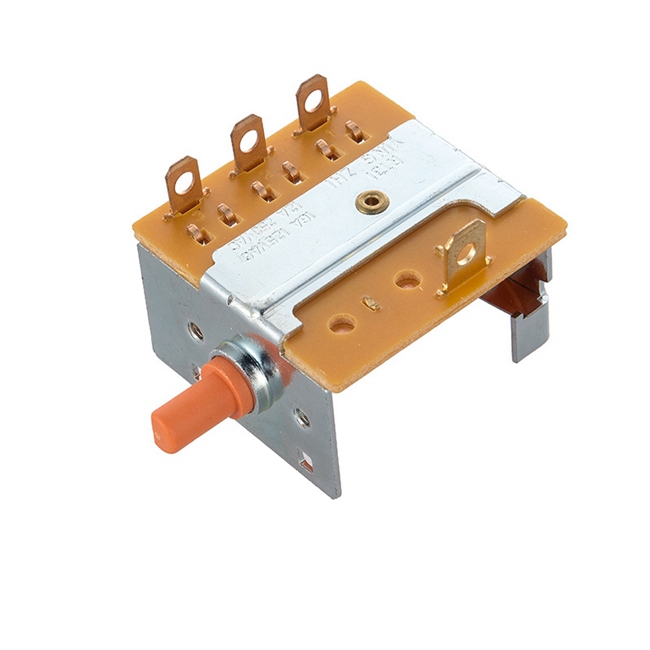

Heater 16A Rotary Switches

Product Description

Model Number: HR31

Min. Order Quantity: 200 Piece(s)

Price Term: FOB/EXW

Price: Negotiable Payment Terms: L/C, T/T, Western Union

Production Capacity: 300000Piece(s) Per Month

Delivery Time: On time

Packaging Details: Packaging

125PCS in a small box with the size 350*215*150MM.

750PCS in a big carton with the size 450*360*480MM

All the goods will be packed by PVC box

Brief DescriptionPower Switch: Used for Heater, Oven, Iron & other electronic equipment with good quality, nice price.

Max. Current: 16A   Max. Voltage: 250V

Mechanical Life: 10000   Position: 4, 6, 8Pole type: Single

RATING: 16A 125VAC; 12A 250VAC;
INITIAL CONTACT RESISTANCE: 20 Max.
INSULATION RESISTANCE: 100MΩ Min. 500VDC
WITHSTAND VOLTAGE: 1000VAC FOR 1 MINUTE
OPERATION FORCE: 750~1000gf-cm
ENDURANCE: 10, 000 CYCLES

MATERIAL:

ACTUATOR: PBT+30%GF(UL 94V-0)
BASE: PHENOLIC LAMINATE(UL 94V-0)
BRACKET: SPCC ZINC PLATED
CONTACT: AG ALLOY
TERMINAL: PHOSPHER BRONZE/BRASS ALLOY
HR31 OVEN ROTARY SWITCH WITH HIGH RATING:
Rating:
16A 125VAC (CQC)
16A 250VAC (CQC)
INITIAL CONTACT RESISTANCE:20mΩ Max
OPERATION FORCE:750~1000gf-cm
INSULATION RESISTANCE:100MΩ MIN 500VDC
WITHSTAND VOLTAGE:1000VAC FOR 1MINUTE
ENDURANCE:10,000 CYCLES




TO MANY DIFFERENT DRAWINGS, HERE IS ONE FOR YOUR KINDLY REFERENCE:

HR31 OUTLINE IS THE SAME BUT WITH DIFFERENT FUNCTIONS:

TURN 4 TIMES CONNECTING 1 POSITION ROTARY SWITCH: ONE CONTACT STRIP, TWO SILVER CONTACTS

TURN 4 TIMES CONNECTING 2 POSITIONS ROTARY SWITCH: TWO CONTACT STRIP, FOUR SILVER CONTACTS

TURN 4 TIIMES CONNECTING 3 POSITIONS ROTARY SWITCH: THREE CONTACT STRIP, SIX SILVER CONTACTS

TURN 6 TIMES CONNECTING 2 POSITIONS ROTARY SWITCH: TWO CONTACT STRIP, FOUR SILVER CONTACTS

TURN 6 TIMES CONNECTING 4 POSITIONS ROTARY SWITCH: THREE CONTACT STRIP, SIX SILVER CONTACTS

TURN 8 TIMES CONNECTING 6 POSITION ROTARY SWITCH: THREE CONTACT STRIP, SIX SILVER CONTACTS
