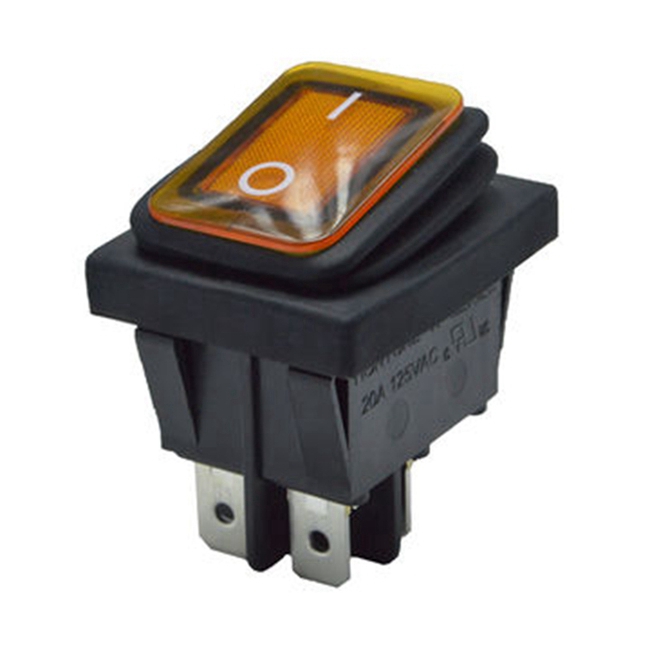

Waterproof Rocker Switch offer a high switching current in a compact design.It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.They have high quality for long life at heavy loads and industry-standard mounting dimensions.This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
Waterproof Rocker Switch offer a high switching current in a compact design.It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.They have high quality for long life at heavy loads and industry-standard mounting dimensions.This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
Items
Rocker switch details
Housing material
PA66
Button material
PC
Contacts material
Copper with compound silver
Rating
3A 6A 10A 15A 250VAC
Temperature
-40℃ to 125℃
Dielectric Strength
1500Vrms min
Contact Resistance
<30MΩ
Insulation Resistance
>100MΩ
Flammability
UL94V0
Eletrical life
50000 cycles
Mechanical life
50000 cycles
Referance standard
EN 61058-1
Approvl marks
CE CQC CCC TUV ROHS ENEC VDE UL
Waterproof Rocker Switch offer a high switching current in a compact design.It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.They have high quality for long life at heavy loads and industry-standard mounting dimensions.This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
