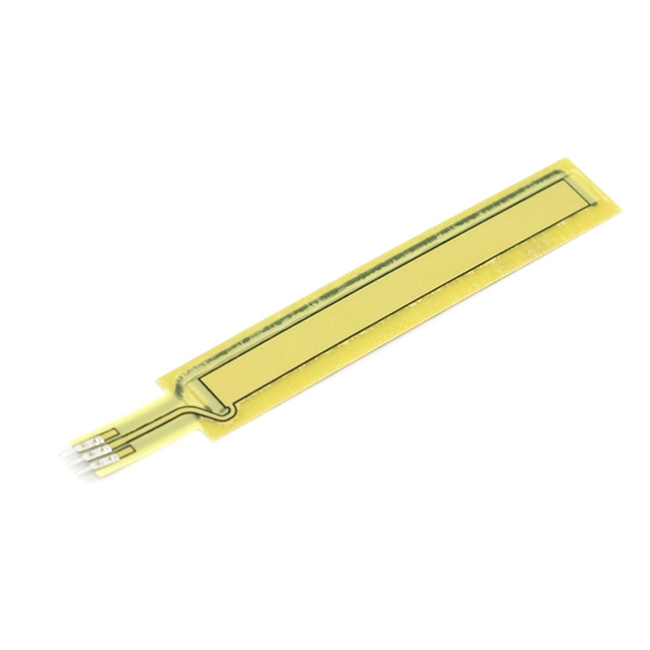

Thinpot Membrane Potentiometer
Thinpot Potentiometers are customizable membrane position Sensors with a flexible,
ultra-thin, light weight profile. It has 2 standard formations, strip and ring. Its low power
requirements and linear output make it the ideal position Sensor for many applications.
1. Features:
Available in both ring and strip formations
Linear output
Resistance proportional to contact placement
IP65 dust proof, water proof(intense spray)
2. Physical properties
Thickness: 0.4mm(without back adhesive)
Connector: Optional
Length&width refer to item 4-Dimensional diagram
Substrate: Polyester
Optional back adhesive: 0.05mm, 3M 200MP adhesive
3. Typical performance
Resistance: Standard 10K ohms
Resistance tolerance: ±20%
Linearity: strip ±3%; ring ±5%
Actuation force: 100 grams
4. Dimensional diagram
4.1 standard type in strip formation
5. Standard connection options
For single channel Potentiometer the standard connection is a 3-wire system with two
resistive output channels and one collector channel. It can also be a 2-wire system with one
resistive output channel and one collector channel.
Solder Tab
Square male pins
Female Receptacles with plain housing
Female Receptacles with Lock housing
6. Customization
The size, shape and resistance can be customized for the client. When you have the request
Please feel free to contact us!
